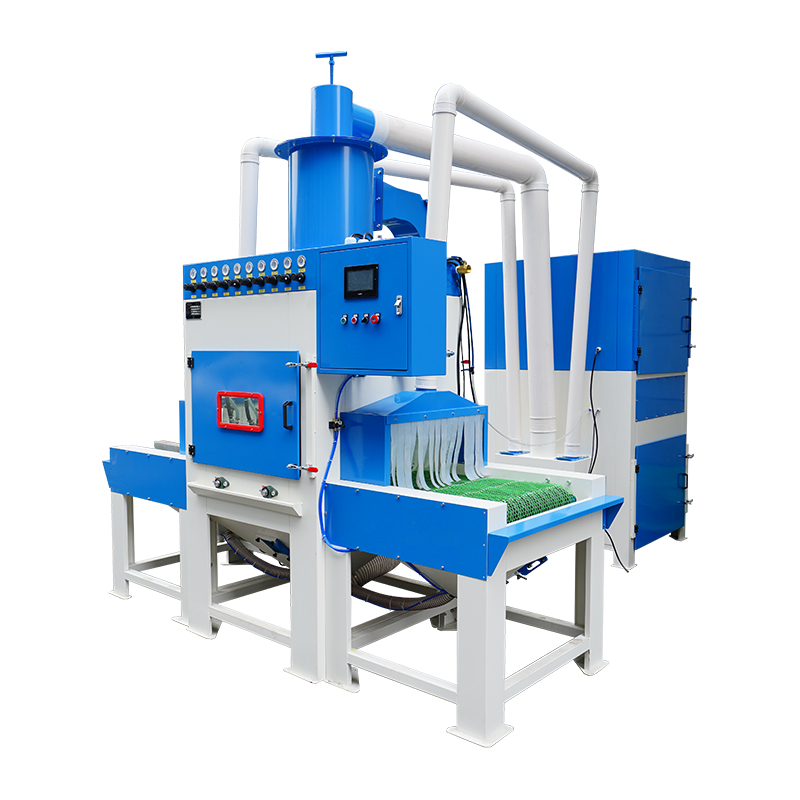

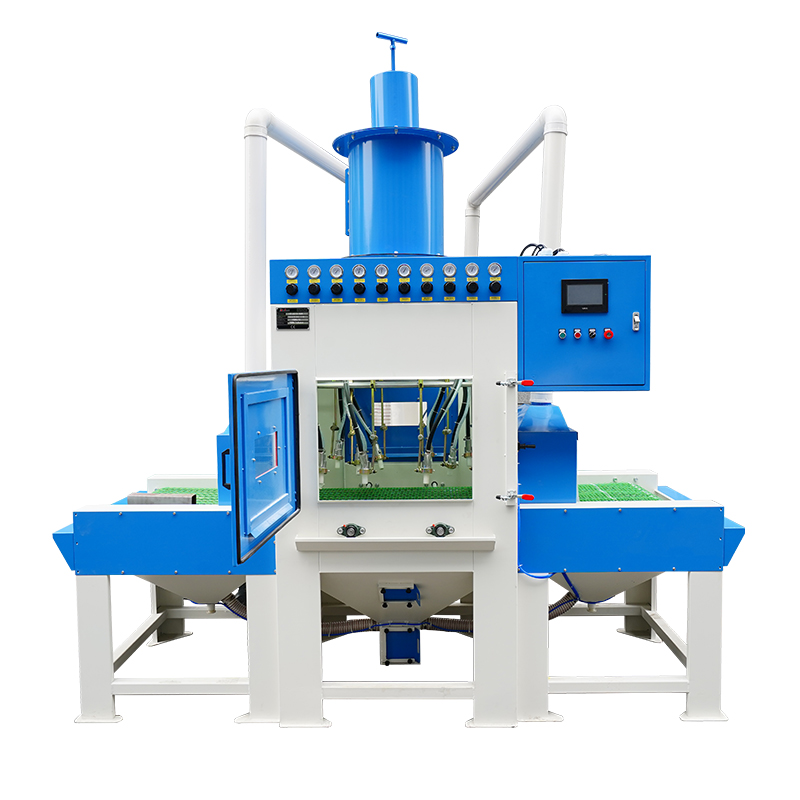

Conveyor Belt Blast Machine, Automatic Sandblasting Machine

The Kafan conveyorized sand blasting machine is a pass-through system with an array of pre-positioned automatic guns sweeping parts in linear motion synchronized with continuous movement of the belt. The conveyor blasting system can be customized in different sizes to suits your products and production.

Belt Conveyor Automatic Blasting Machine Application

The automatic conveyor blasting system allows a batch of workparts pass thru the working chamber for process, which realizes a required big output with uniform quality, suitable for workparts such as steel plates, glass plates, aluminum plates, wood and plastic panels, as well as other long profiles and tubes.

Conveyor Belt Automatic Sandblast Machine Working Process

During operation, the operators put the workparts on the conveyor belt, when the workparts are transported into the sandblasting area, they will be abrasive blasted by a group of automatical guns in fixed or oscillating motion, whihc ensures parts' surfaces are completely cleaned. When the workparts come out from the sandblasting area from the other side of the conveyor, they will be manually or automatically cleaned to remove residual dusts by air guns, and finally discharged.

Conveyor Belt Blast Machine, Automatic Sandblasting Machine Details

 Adjustable Blast Guns
Each blast gun is individually controlled for woking or not, as well as allows adjustable swinging speed and angle. The blast gun group can be set for fixing blasting or oscillating blasting, which depends on the shaped of the being finished objects.

 Continuous Conveyor Belt
The conveyor is controlled by frequency converter, whose speed can be steplessly regulated as you need. Several types of conveyor belt are available to move your parts through the blasting area, such as stainless steel belt, rubber belt, or roller conveyor.

 PLC Touching Screen
Our automatic blasting system standardly applies advanced PLC electric control system, with a high degree of flexibility and stability. The touching screen offers user-friendly interface to manage the blast gun working, adjust conveyor speed or start the dust collector, etc

 High Efficiency Dust Collector
Designed with cyclone separator for effectively separation of abrasives from dusts. along with an independent cartridge filter dust removal system with excellent effect of dust extraction and ventilation. It combines with a group of high precison cartridge filters made of 100% polyester.

Conveyor Belt Blast Machine Specifications (KF-3208-10A for Reference)

*Each of Kafan automatic blasting system can be custom-designed as requests.
