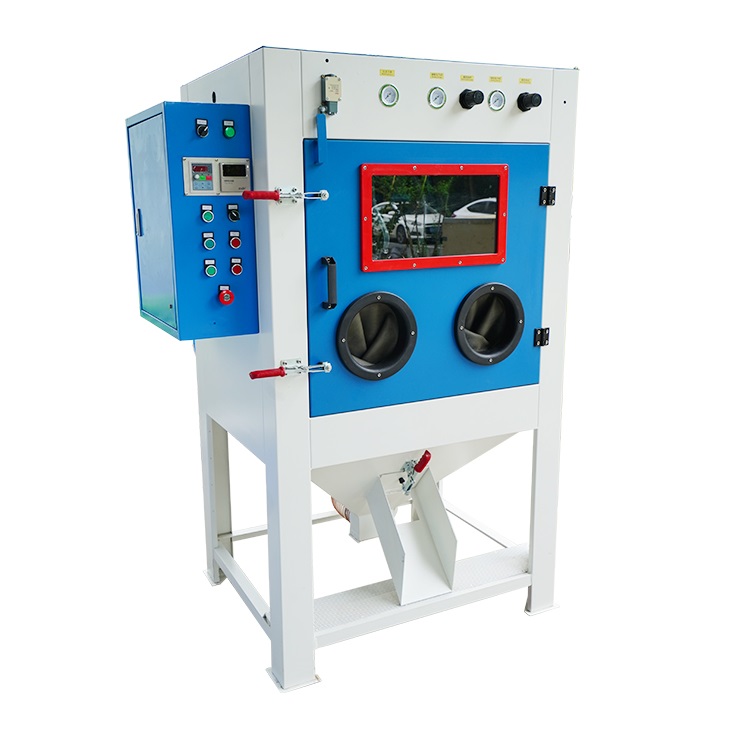

Tumble Basket Blast Cabinet, Automatic Sandblasting Machine

This tumble basket type automatic sandblasting machine is quite ideal for processing small metal or non-metal accessories in high volume. Automatic tumbling and blasting actions ensures excellent uniformity and quality consistency.

Tumble Basket Blast Cabinet, Automatic Sandblasting Machine

description1

Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout

Description

Tumble Basket Blast Cabinet, Automatic Sandblasting Machine

The tumble basket blast machine offers high production by automatic tumbling & blasting, greatly saving manual labor and increase output. Installed with a tumble basket which holds big volume of small sized accessories. It also allows manual operation by setting the gun into manual model. The enclosed tumble blaster provides an environmental-friendly working space

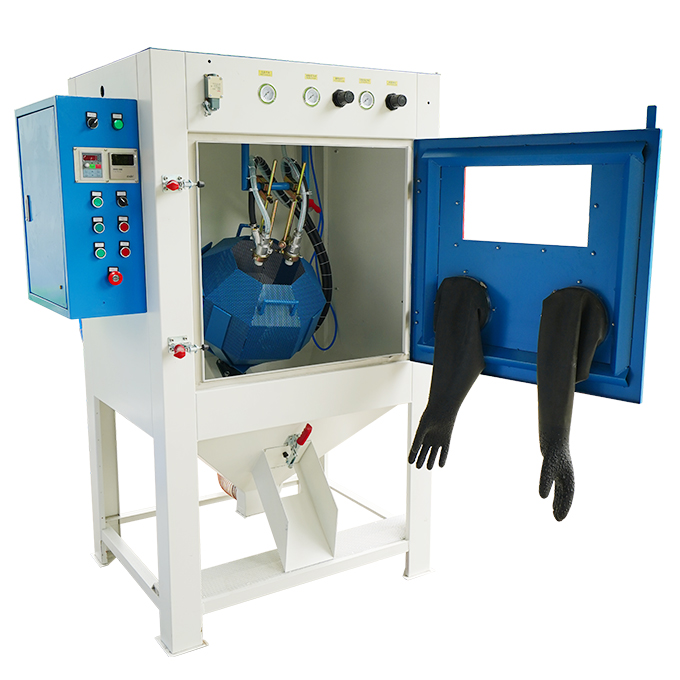

Adjustable Blast Guns & Tumbling Basket
The blast guns can be set for automatic blasting for unmanned working, as well as set for manual operation for more precise operating. Blasting angles can be adjust by the adjustable brackets. The quantity of the blast guns can be customized as requests.
The tumbling basket is 360 degrees automatic rotated that ensures the loaded workparts getting overall sandblasting, whose rotary speed is variable frequency controlled.

Electric Control
It is an easy system to control the working pf blast guns, dust collector, and achieve one-buttom switch manual operatin to automatic

Cyclone Seperator
Can be optionally equipped with cyclone separator for effectively separation of untrafine abrasives from dusts, increasing the recycling rate of pure abrasives.

Filter Cartrige Dust Collector
Configurated with an independent dust removal system with excellent effect of dust extraction and ventilation, which combines a piece of high precision cartridge filter made of 100% polyester.

Tumble Basket Blast Machine Specifications (KF-1080ZL for Reference)

*Each of Kafan automatic blasting system can be custom-designed as requests.

Model	KF-1080ZL
Working Chamber Size	Length1000 * Width800 * Height800mm
Overall Size	Length1200 * Width1250 * Height1800mm
Tumble Basket Diameter	500mm(can be customized)
Power Supply	380V/220V, 50HZ (voltage can be customized as local)
Total Power	1.1kw
Blast Gun	2pcs, with Boron Carbide Nozzle
Basket Tumbling Speed	8 round/min
Compressed Air Requirement	Pressure 2-7bar(kg/cm^2)
Air Flow	1.5-2.0m3/min, dry and clean compressed air)
Body Material	2mm Steel Plates Welded with Coated Surface

Tumble Basket Blast Machine, Automatic Sandblasting Machine Working Process

Automatic Tumble Basket(barrel) Blast Machine is suitable for high volume processing of small parts with manual or automatic operation, such as: screws, buttons, zippers, small pieces of hardware products, rubber or plastic accessories, etc

The simple tumble blasting system provides easy operation. Users just load workparts into the basket, close the door, set the blasting time, turn on the dust collector and start the machine, all parts will be automatically finished, entirely and evenly. The automatic tumble blast machine obviously improve production on quantity, quality.
