Wet Tumble Blaster, Automated Sand Blast Cabinet
Tumble type wet blast machine suits for high productivity of small parts which require high requirement wet blasting, automatic batch processing delivers uniformity and consistency.
Wet Tumble Blaster, Automated Sand Blast Cabinet

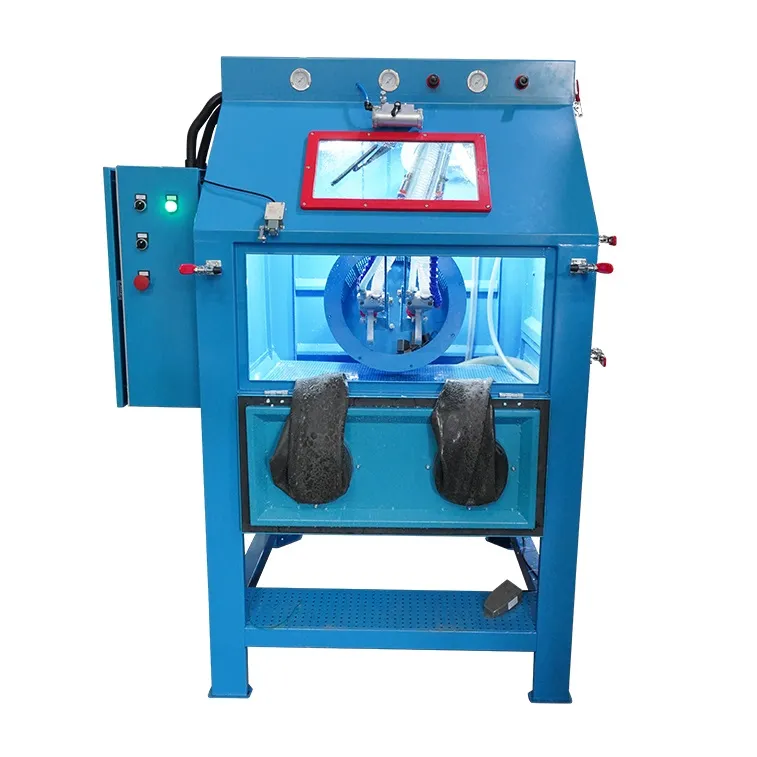

Automatic wet blaster installed with a tumble basket which can hold big volume of small sized parts, is specially produced for batch finishing, deburring cleaning using water-borne abrasive blasting technology. Our wet blast tumbler applies a PLC controller for precise, flexible, unmanned operation. This machine is a great option to free up time for customers and to help improve efficiency.
kafan Wet Blast Cabinet Features

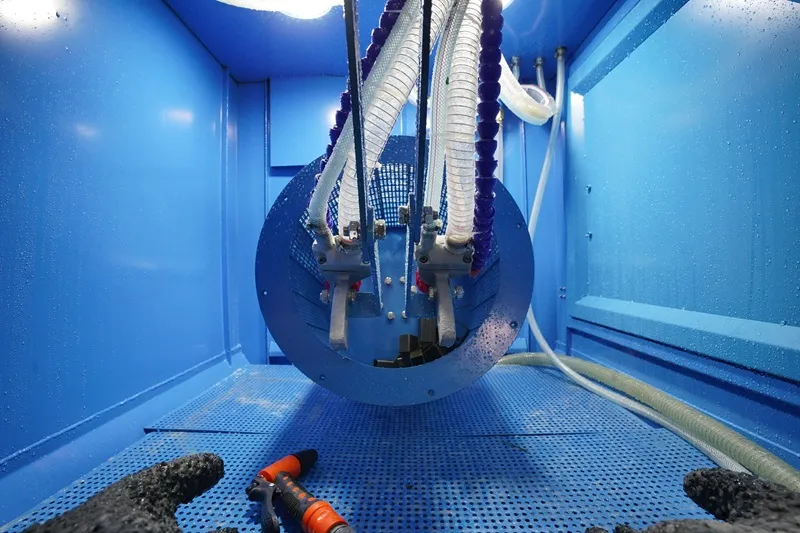

Tumble Blast Basket & Automatic GunsConfigured with an automatic tumbling basket, and 2 pcs automatic guns, 1 piece washing gun. This mechanism ensures full coverage of abrasive flow on parts' surfaces. The tumbling speed of the basket with frequency control can meet different processing needs.
Automatic blasts guns can be also set for manual operation, each wet blast gun configures a high-flow 9.5mm boron carbide nozzle which is durable enough. Quantity of auto blast guns can be customized.

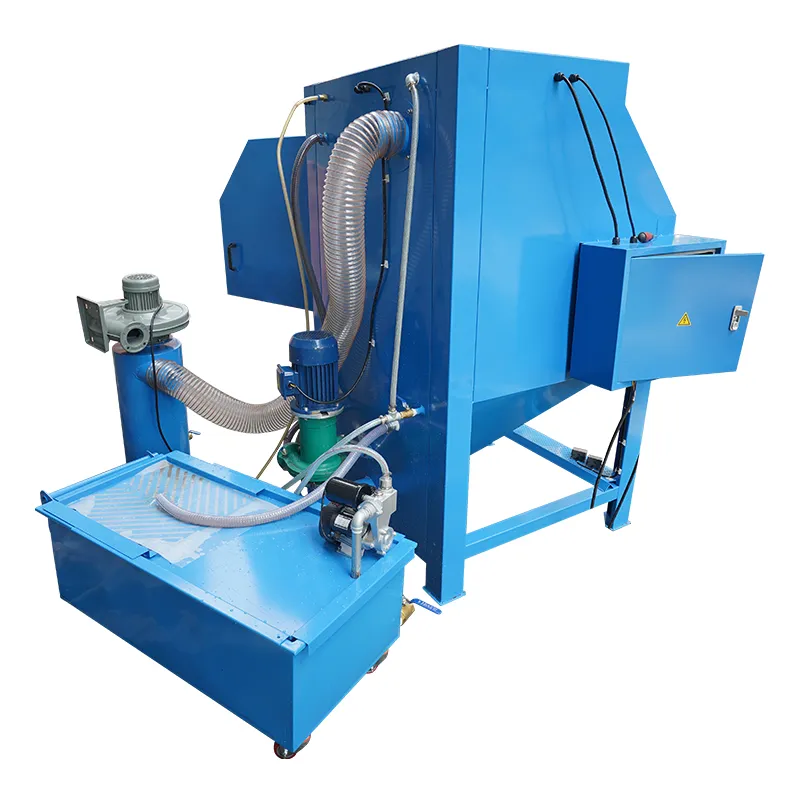

Water Recirculating SystemYou can add a water recirculating system that achieve a closed loop wet blasting system, which means it does not require running water, or worry about waste water disposal.
A recirculating tank interconnected to the cabinet, the blasted slurry mixture will be transferred to the tank for separating of water and abrasive. which is filtered by precise filter paper and rinsing tank.
PLC Touch ControlThe machine operates using a PLC controller and touching interface. This controller is programmable with various functions needed to produce an optimal finish based on different quantities, size of products.
The blasting time, tumbling speed, blast gun pressure, flushing time, pump working, etc, all parameters and functions can be set on the controller first, at then you can achieve a fully-automatic, unmannerd process.
Wet Blasting Cabinet Specifications (KF-1010ZLW)
| Model | KF-1010ZLW |
| Working Chamber Dimension | Length1000 * Width1000 * Height800mm |
| Overall Dimension | Length1100 * Width1400 * Height1800mm |
| Power Supply | 220V/380V, 50-60HZ (voltage can be customized as local) |
| Pump Motor | 1.5kw |
| Wet Blast Gun | 2pcs, with Boron Carbide Nozzle |
| Light | 2*18w energy-saving lamps |
| Compressed Air Requirement | 0.2-0.8Mbar |
| Air Flow | 0.5-1.1m3/min |
| Volume of abrasive & water | 50L |
| Feed abrasive | 8-15kgs |
| Suitable abrasive | Glass beads(for aluminum, stainless steel) Brown Aluminum Oxide(stell or other)80#-320# |
| Abrasive:Water | 1:3 |
| Body Material | Stainless Steel Plates Welded with Coated Surface |
Why Choose Wet Blasting Cabinet for Surface Preparation
1. Much Cleaner Process. Thanks for the introduce of water, it is not only a finishing process but a washing action, three is no media impregnation into the parts, and not residual dusts on the objects and create a dustfree working chamber.
2. Finer Finish: Water-borne abrasive cushions the impact onto objects during finishing process, giving a finer and higher quality finish, especially for delicate or precise products, such as auto parts(wheels, valvaes, brake calipers).
3. Reduce Wear. The broken rate of media is decreased due to the cushioning from the water, and the blasting tool also gets less wear, as a results that wet blasting reduces production cost.
