Multi-Station Sand Blast Cabinet, Big Sandblasting Machine



The sandblast cabinet with 2 working stations is designed for operating big sized workparts. The blast cabinet can be made suction type, pressure type, wet type with different sizes.

description1
Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout
Description

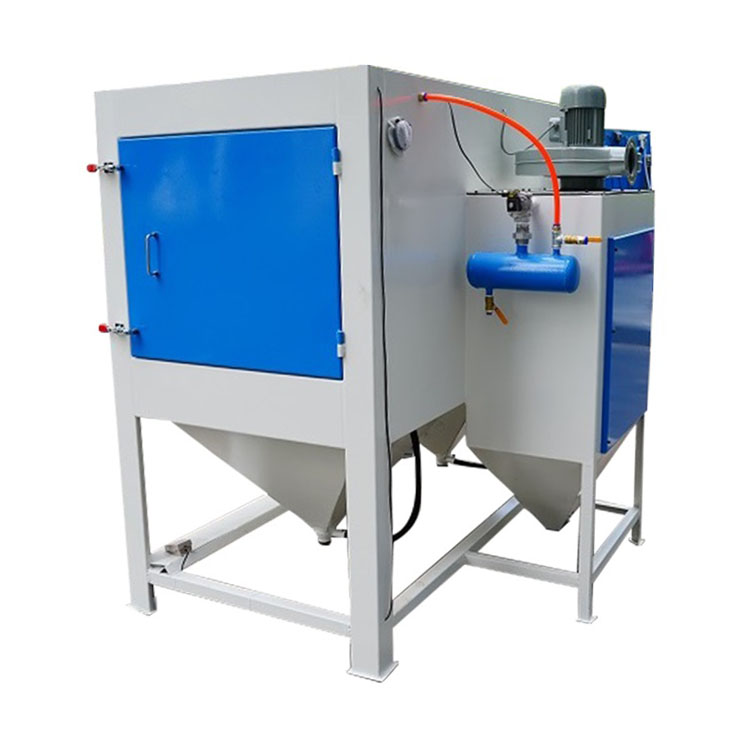

Multi-Station Sand Blast Cabinet, Big Sandblasting Machine

These sandblasting cabinets are designed with 2 working stations allow one or two users to operate together for oversized workpieces, while the big internal space offering your great flexbility. The working cabin of sandblaster can be customized based on product specifications, such as designing 3 or 4 working stations.

Our environmetal cabinet designed sandblasting machine can effectively handle a lot of cleaning purposes such as removing impurities, rust, old paints and other contaminants, results in a smooth and clean surfaces.

  • Multi-Station Sand Blast Cabinet
  • Big Sandblasting Machine



Kafan Multi-station Sand Blast Cabinet Features

The Kafan factory-direct manufactured sand blasting machine applies high performance components, longlife materials. professional structure designs, offering reliable, effortless and safe jobs for various surface finishing applications

  • sandblasting cabinWell-sealed enclosed cabin design without dust and abrasive leakage features evironmental-friendly.
  • The blast cabinet is fitted with urable blasting guns with boron carbide nozzle for long lasting use.
  • air blowing gunConfigured with an air blowing gun to remove residual dust after blasting.
  • The air pressure for the blast gun can be easily controlled on the front of blast cabint.
  • foot switchBlasting can be controlled by foot padel switch, in order to increase safety and reduce efforts.
  • cartridge filter dust collectorFilter cartridge dust collector removes dust away from the blasting chamber for the operator's visibility



Why Choose Sand Blasting Cabinet for Surface Treatment

Our sandblasting cabinet is designed for abrasive blasting of industrial parts or components, like steel parts, aluminum parts, castings, alloys, stones, glass or plastic materials. It is an economical suction blasting equipment that achieve general surface finishing purpose, such as removing mill scales, contaminates, old coating layers, etc.

Specifications

Dual-station Suction Blast Cabinet Specifications (KF-2010-2 for Reference)

Model KF-2010-2
Working Chamber Dimension Length2000 * Width1000 * Height850mm
Overall Dimension Length2100 * Width1500 * Height1700mm
Dust Collector Dimension Length430 * Width430 * Height1600mm
Power Supply 220V/380V, 50-60HZ (voltage can be customized as local)
Dust Collector Motor 0.75kw
Blast Gun 2pcs, with Boron Carbide Nozzle
Compressed Air Requirement 5-8bar
Body Material 2.0mm Cold-rolled Steel Plate Welded with Coated Surface
