Manual Type Wheel Sandblasting Cabinet



It is a dry suction type manual blast cabinet, designed with a heavy-duty turntable and a cart, in which way easily cleaning wheels with precise operation.

description1
Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout
Description

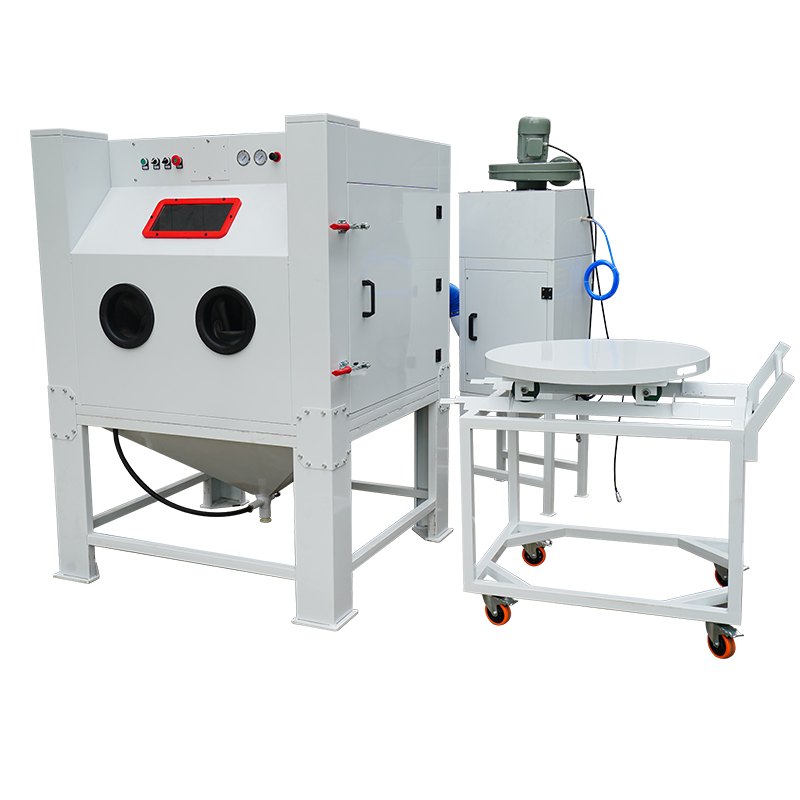

Wheel SandBlasting Cabinet ( Dry, Suction, Manual Type)

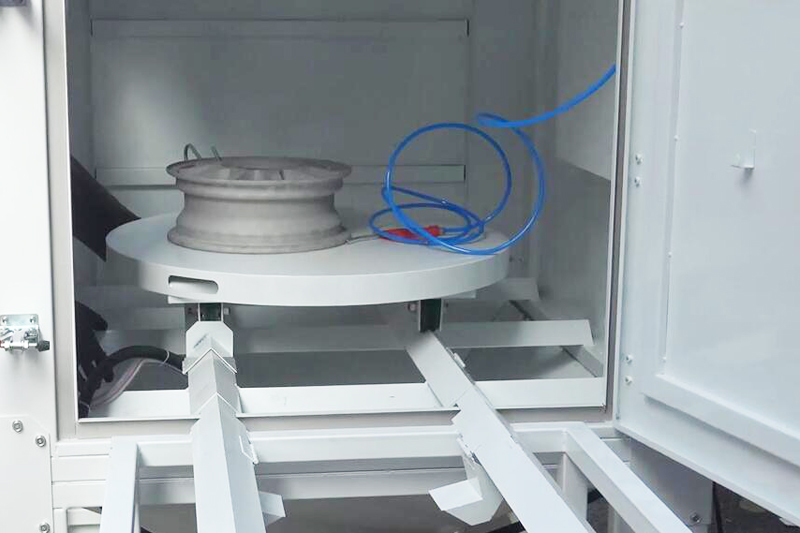

Manual blasting cabinet is more precise to remove the impurities, rust, old paints and other contaminants from dead corners of wheels. The turntable provides 360 degree rotating action manually, which reduce the efforts to move the wheels. The cart is ideal to push the wheel from outside to inside at ease.

  • wheel sandblast cabinet
  • wheel blast cabinet

kafan Suction Type Manual Sandblasting Cabinet Features

The Kafan factory-direct manufactured sand blasting machine applies high performance components, longlife materials. professional structure designs, offering reliable, effortless and safe jobs for various surface finishing applications

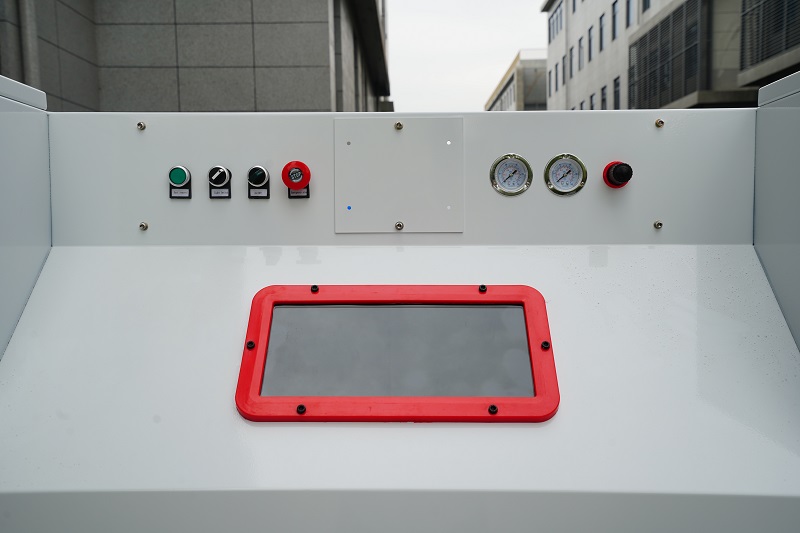

  • Air pressure regulationAir pressure regulation for blast gun

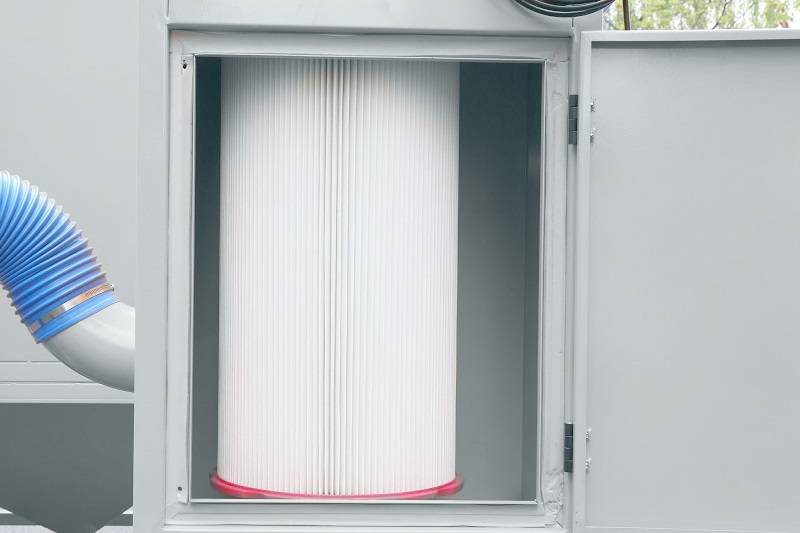

  • Filter cartridge dust collectorFilter cartridge unit for dust removing

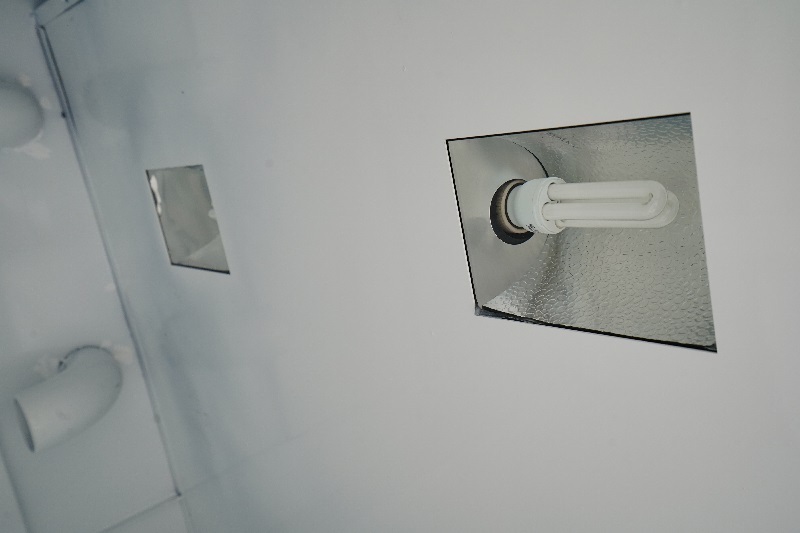

  • Built-in lightBuilt-in light for clear working view

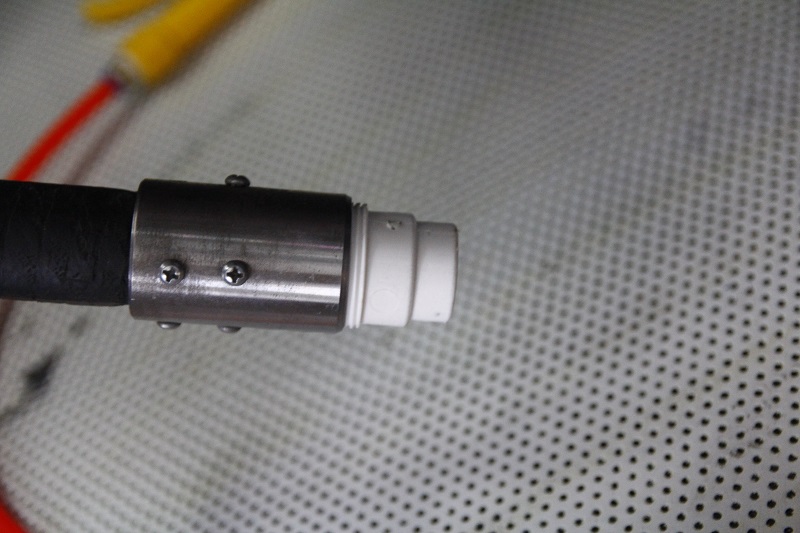

  • blast gun with boron carbide nozzleDurable blast gun with boron carbide nozzle

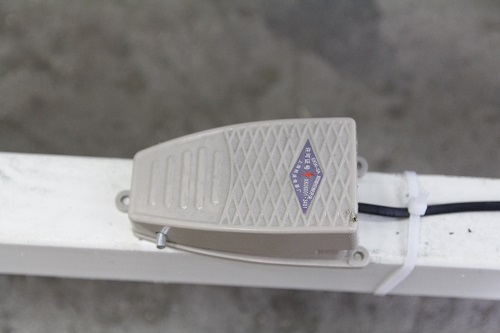

  • Foot switchFoot switch for control of the blast gun

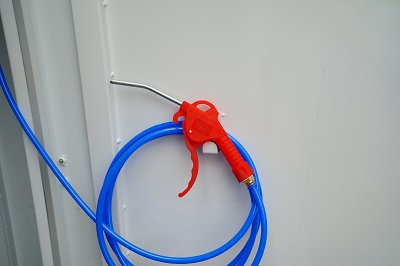

  • Air blowing gunAir blowing gun for removing surface dusts.



Wheel Sandblasting Cabinet Application

Our manual suction type wheel sandblasting cabinet achieves general surface finishing purpose, such as removing mill scales, contaminates, old coating layers, etc. It is an ideal tool for preatrement of powder coating and painting.



Wheel Sandblasting Cabinet Specifications (KF-1212-FTA for Reference)

Model KF-1212FTA
Working Chamber Dimension Length1200 * Width1200 * Height800mm
Overall Dimension Length1200 * Width1680 * Height1840mm
Turntable Diameter 800mm; Loading Capacity: 200kgs
Manual Blast Gun 1pcs, with Boron Carbide Nozzle
Power Supply 110V/220V, 50-60HZ (voltage can be customized as local)
Dust Collector Motor Power 0.75kw
Lighting 18w Fluorescent
Compressed Air Requirement 3-8bar(kg/cm2)
Air Flow 0.5-1.2m3/min dry and clean compressed air)
Body Material Cold Rolled Steel Plates Welded with Coated Surface
