Tumble Shot Blasting Cabinet, Tumble Belt Blast Machine
Airless electric-driven tumble shot blasting, high cleaning efficiency, low maintenance cost. The tumble belt blasting cabinet is suited for surface treatment of small and medium sized parts requiring high output and good uniformity.
Tumble Shot Blasting Cabinet, Tumble Belt Blasting Machine

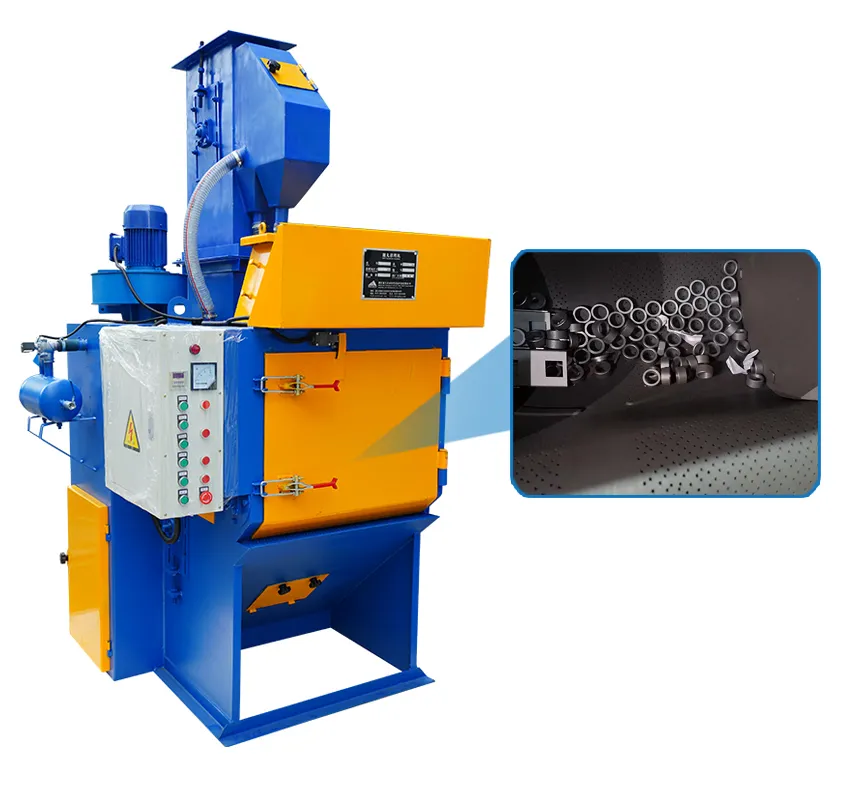

Tumble shot blasting machine (also known as tumble belt / crawler shot blaster) is designed for surface treatment of small & medium sized workpieces in batches. Parts automatically tumble on a thick, perforated steel belt, a high-speed rotating impeller throws out steel shots in high speed and high flow to all exposed surfaces achieving 360° uniform cleaning without dead corners..
Tumble Shot Blasting Cabinet Features
1. Airless electric-driven shot blasting, high cleaning efficiency, low maintenance cost.
2. Durable tumbe belt & wear-resistant cabinet liners, ensure long service life.
3. Complete abrasive recycling system: bucket elevator for automatic media recovery and reuse.
4. Enclosed cabin design with filter dust collector, compliant with environmental protection standards.
5. Compact footprint, no heavy foundation required, low noise, requiring easy installation and operation.
6. Batch tumble design, full uniform blasting for bulk small workpieces even with corners & recesses.
Tumble Shot Blasting Cabinet Configurations

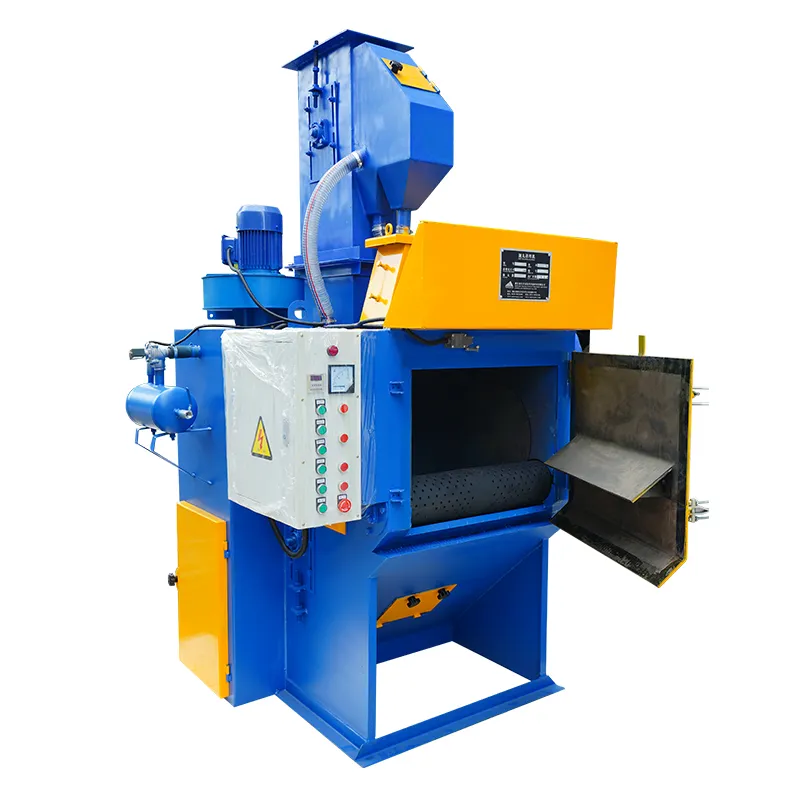

Wear-resistent Shot Blasting Chamber
The shot blasting chamber is configured with perforated steel plate riveted welding and laid with alloy guard plates, all peform wear-resistant, impact-resistant and long lifespan.
The electric control cabinet is flexible to manage the working of the impeller, tumbling belt, setting blast cycle time, starting dust collector, and other basic functions.

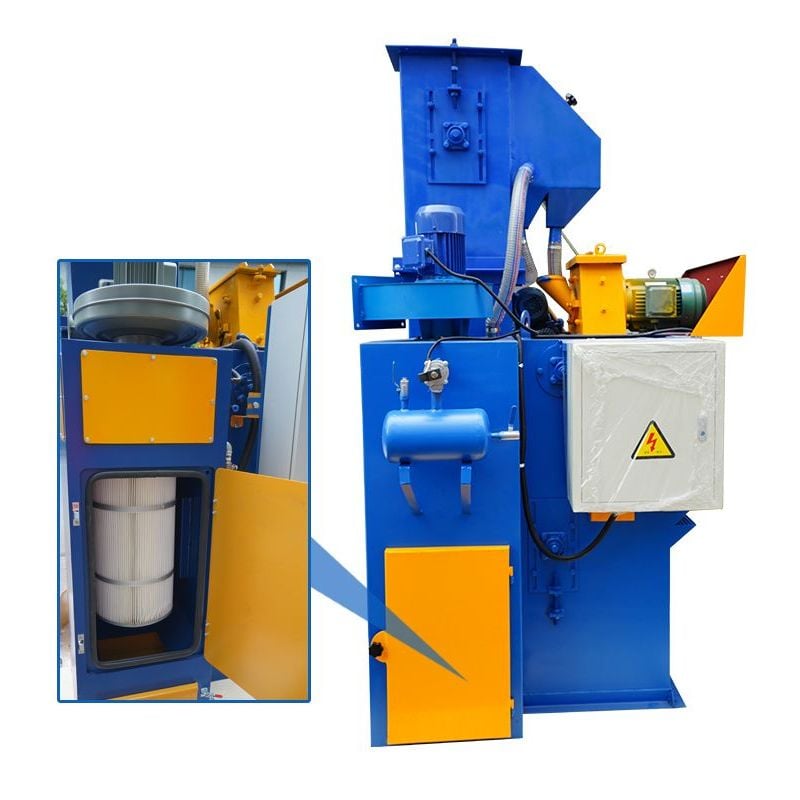

Media Lifting Elevator & Filter Dust Collector
The heavy blasting media such as steel shots after using are lifted by the bucket elevator.and delivered back to the blasting system for recycling. saving consumables.
A pulse-cleaning filter cartridge for dust removal system features high removal efficiency and requires easy installation and maintenance, ensures least workshop dust emission.
Tumble Belt Shot Blasting Machine Specifications (KF-S4065 for Reference)
*Each of Kafan automatic blasting system can be custom-designed as requests.
| Model | KF-S4065 |
| Working Chamber Size | Diameter 400mm * Length 650mm |
| Overall Dimension | Length1300 * Width1600 * Height2500mm |
| Dust Collector Size | Length1200 * Width900 * Height2140mm |
| Power Supply | 380V/220V, 50HZ (voltage can be customized as local) |
| Impeller Head Power: | 4kw |
| Belt Driven Motor Power: | 0.75kw |
| Dust Collector Motor Power | 1.5kw |
| Shots Lifting Motor Power | 0.75kw |
| Media Flow Rate | 60kg/min |
| The diameter of holes in the tumble belt | 3mm |
Tumble Belt Automatic Shot Blasting Machine Application
This tumble belt type shot blasting machine is quite ideal for surface treatment of small and medium sized parts features relatively heavy, complex-shaped, also requires high output and good uniformity.
It is widely used for removing casting sand, rust, oxide scale, welding slag and burrs. It also performs shot peening to improve metal fatigue strength and prepare rough, adhesive-friendly surfaces before coating or electroplating. Two belt options available: rubber belt for delicate aluminium, non-ferrous parts with gentle tumbling; manganese steel belt for heavy-duty cast iron, steel forgings and heat-treated components.
